Product Data Sheet

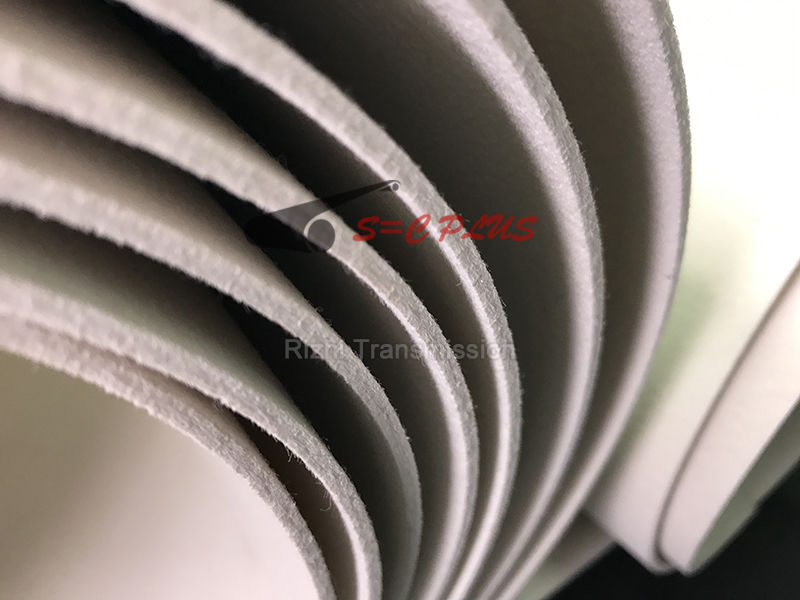

Name: Kongsberg Digital Cutter Double-side White Thickness 4.0mm Cutting Underlayment Felt Belt
Product number: 119914112
Product model: NN-17E/R40
Colour(surface/subface): White
Texture(sur/tensile layer): Felt belt/fabric
Weight( Kg/m2): 1.8
Min drum diameter( mm): 70
F/E at 1% ( N/mm ): 10
Temperature range( °c): -10 〜120
Number of coating: 2-PLY
Thickness( mm): 4.0
Foodgrade: No
High conductivity: Yes
Flame retardant: Yes
Antistatic: Yes
Surface hardness(N/mm): 70
Max wideth( mm): 2000
Product Description
Conveying surface features: Anti-static, flame retardant, low noise, impact resistance
Splice Types: Preferred Wedge splice,others open splice
Main features: Excellent sports performance, good abra sion resistance, low elongation, high electrical conduct! vity, excellent flexability
Available : roll belt endless blet Pre-opening belt or bonding
Application: paper cut,printfold,package belt
Brand Application: Zund,Esko,Lectra,Atom,Summa, Mimaki cutting machine and so on
Product advantages: Cutting Underlayment white 4.0mm with perforated or bonded guide baffle belt with mechanical buckle joint
Additional Information
The pulley diameters are valid for a hot spliced belt and at the indicated belt force. Depending on the splice and working conditions (e.g.temperature), different pulley diameters may be possible or necessary. When fasteners are used the minimum diameters are increased by approx 50%. Consult our specialists for available profiles and accessories.
